Kiosc: Customise your touch screen user-interface Kiosc is an app for creating custom touch screen user-interfaces for the Visual Productions’ range of lighting controllers. Kiosc is designed to have no editing capability, making it a fool-proof interface that can safely be presented to non-technical operators. Remote control our lighting controllers Kiosc is the ideal way to remote control our solid-state lighting controllers like CueCore2, QuadCore, IoCore and B-Station. You can also use it control our CueluxPro software. Kiosc enables you to choose scenes or presets, set intensity levels or choose RGB colours.

Design your own dashboard Kiosc gives you the freedom to design your own control interface. You can make as simple or extensive as you like. Control elements like buttons, sliders, rotaries, colour pickers, xy-control and labels are at your disposal.

Run on any platform Kiosc is available on desktop and mobile operating systems. You can download Kiosc for Windows, macOS, Ubuntu Linux, iOS and Android via the corresponding App stores. Because Kiosc is distributed via the App stores, you will not find the software on our download page.

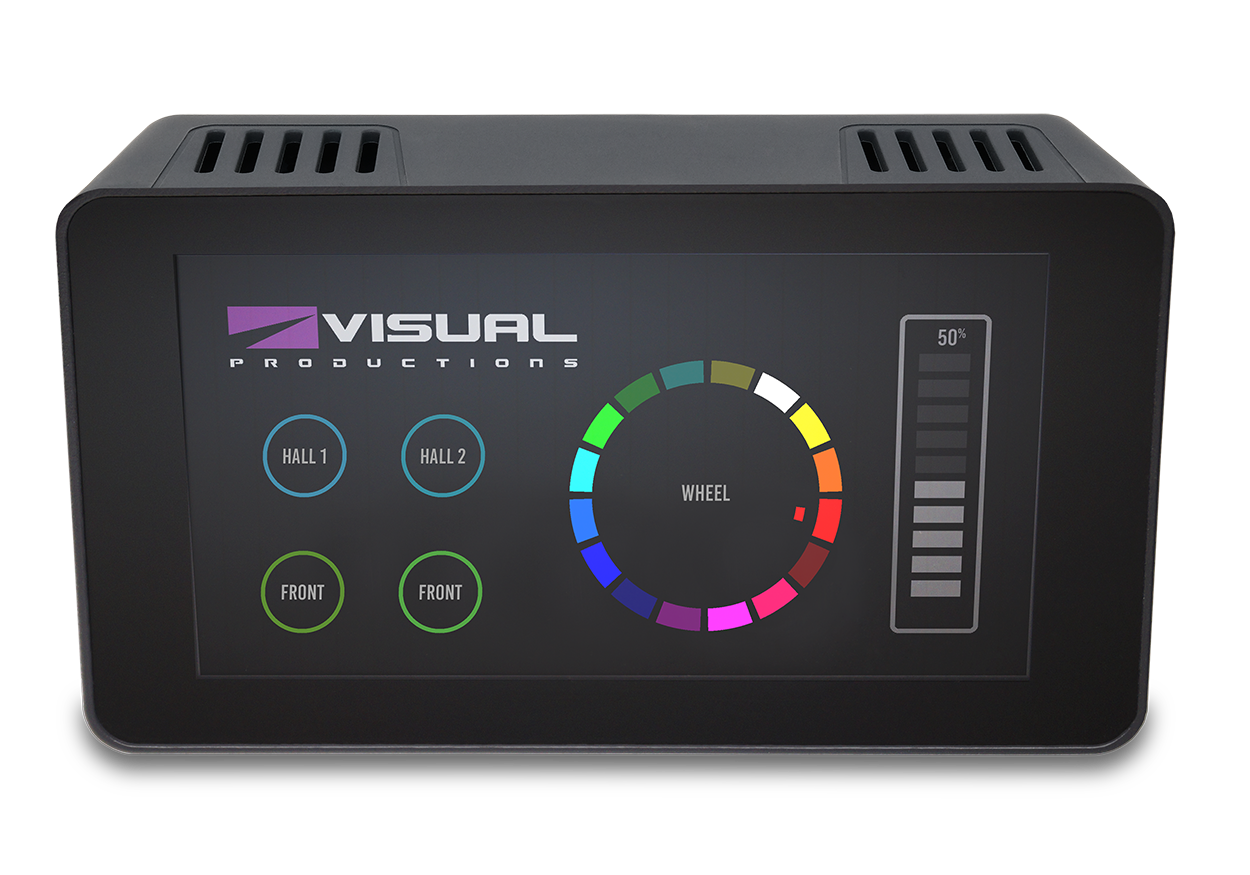

• 7” capacitive touch screen
• 800x480 pixels
• Wall mount
• VESA 75
• Power over Ethernet (PoE class III)
• Kiosc app pre-installed
• OSC
• UDP
• 460 gram (1 lbs)
• Operating temperature -20°C to
• +50°C (-4°F to 122°F)
• Compliance EN55103-1 EN55103-2
• Bundled with vManager and
• Kiosc Editor software

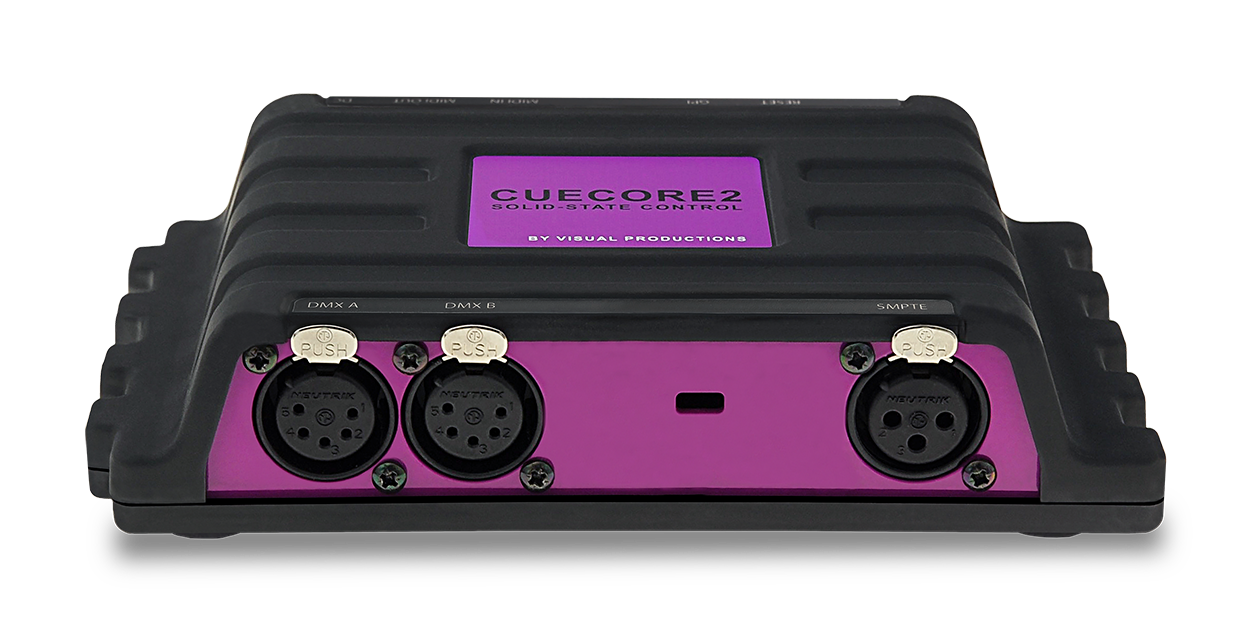

The CueCore2 is a compact form-factor lighting controller for (semi-)permanent installations and architectural lighting. Designed for non-stop operation, the CueCore2 has no moving parts; the unit is completely solid-state and achieves a remarkable level of reliability that allow lighting engineers to ‘fit and forget’.

Although it is bundled with various supporting software tools, once programmed, the CueCore2 can operate completely stand-alone. It will playback lighting shows, static scenes and dynamic effects through its two DMX-512 universes. The unit can be programmed to respond to a variety of incoming protocols or scheduled to time or day.

• 2 x DMX-512 opto-isolated (in or out)
• Art-Net & sACN (in and out)
• KiNet (out)
• MIDI, MSC & MMC
• OSC & UDP (in and out)
• TCP triggers (in)
• GPI port with 4 contact-closures or 0-10V inputs
• On-board lighting controller with 6 independent playbacks
• DMX, Art-Net and sACN show recorder
• Scheduling with Real-Time clock, weekdays and sunrise/sunset
• NTP time synchronisation
• SMPTE, MTC and Art-Net timecode slave
• Show Control function (connect any input to any output)
• Master/slave protocol for synchronising multiple units
• Compatible with Kiosc
• PoE
• Desktop or DIN Rail mounted
• Kensington lock

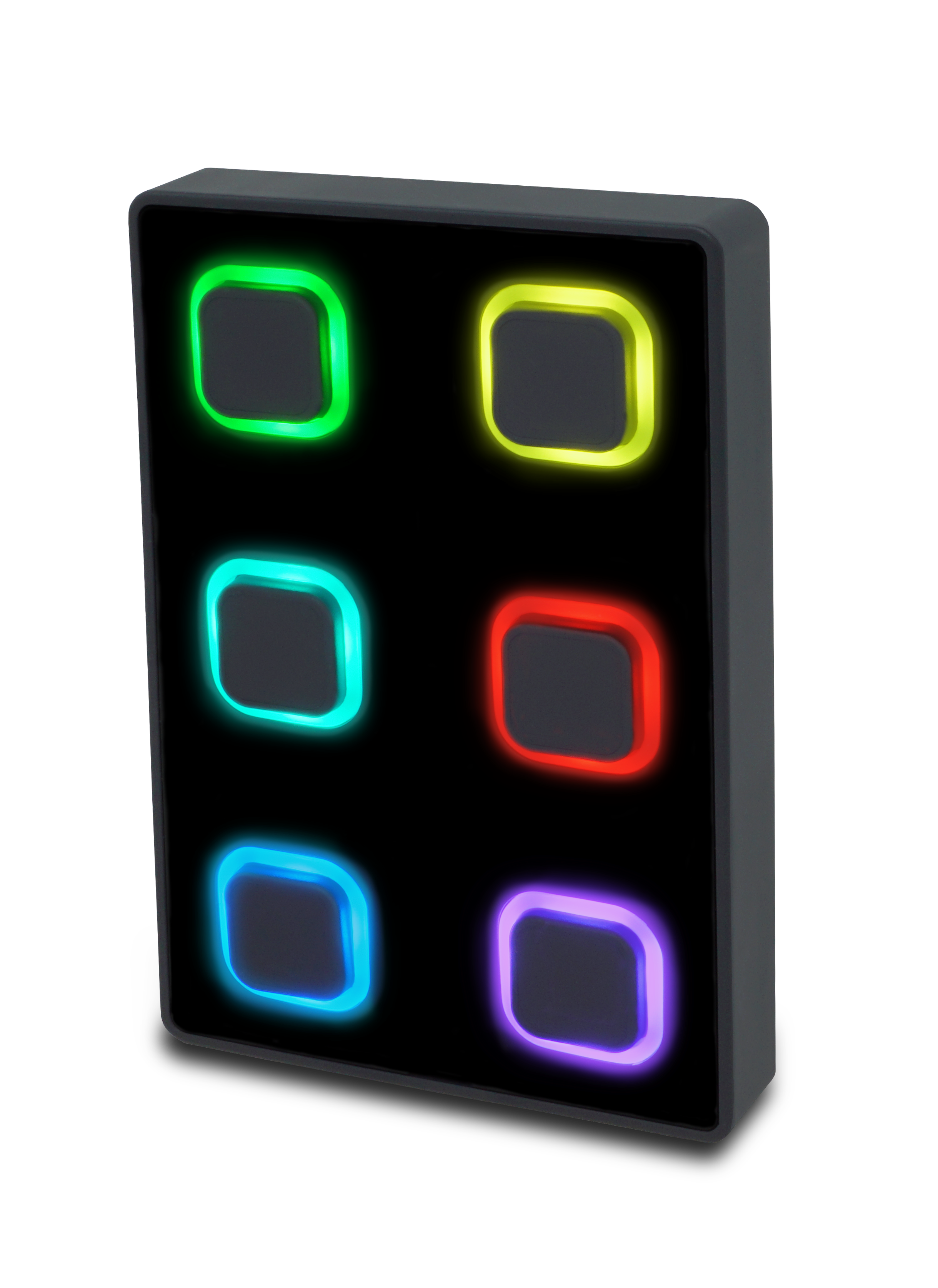

Designed to offer a user-interface to your lighting project, the B-Station2 is a wall-mount panel with 6 push-buttons. The buttons can be configured to send out a multitude of control messages via DMX, UDP, OSC, Art-Net or sACN. The B-Station2 is the ideal device for triggering your lighting scenes stored in a CueCore2 or LPU-2 controller.

The push-buttons are fitted with RGB LED rings. The LEDs can be freely programmed to create an intuitive user experience, for example by indicating which button or lighting scene is active, or representing the real-time colour of the fixture.
Messages from protocols such as DMX, UDP, OSC, Art-Net or sACN can be used to control the feedback to the LED rings.

For small lighting projects, the B-Station2 is a clever, compact and complete stand-alone solution. Fitted with a DMX port, the B-Station2 can be programmed via the web-interface. It features a patch for 32 fixtures, 6 playbacks, many cues and even a basic FX-engine.

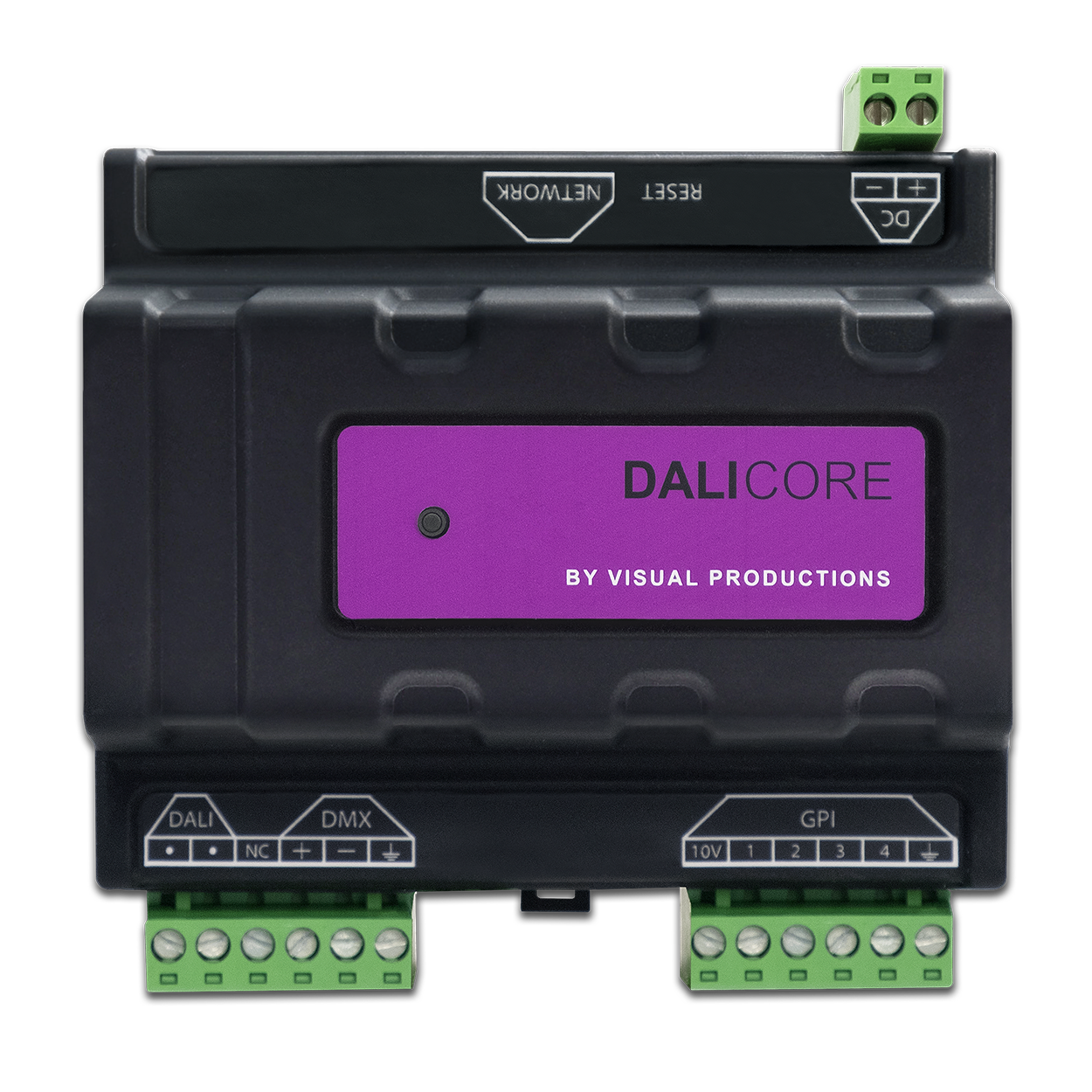

DaliCore The DaliCore is a lighting controller for DALI and DMX installations. This DIN rail device offers an intuitive web-interface for commissioning and programming DALI and DMX fixtures. The controller can easily be connected via UDP, OSC, TCP, Art-Net, sACN and GPI. The DaliCore fits well into Visual Productions' eco-system of B-Station and Kiosc front-end devices. The DaliCore can also be used for converting DMX to DALI.

• DALI port
• DMX-512 port (RDM supported)
• 4x GPI
• Ethernet
• UDP
• OSC
• Art-Net
• sACN

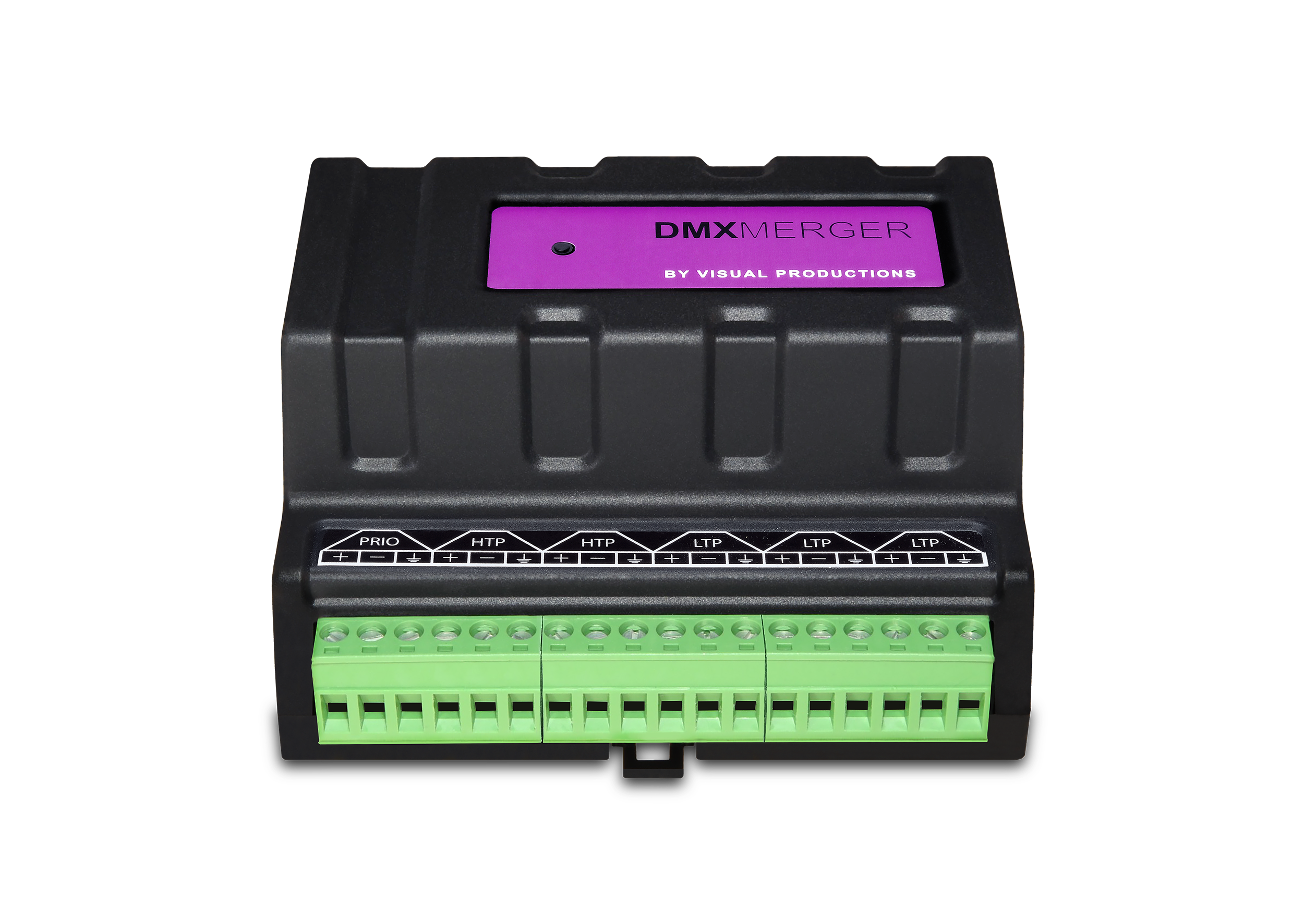

The DmxMerger is DMX-512 merger in a DIN rail form factor. The device features six optically isolated DMX inputs and one optically isolated DMX output.

The DmxMerger offers three different merging strategies.The Latest Takes Precedence strategy selects one of the LTP inputs based on which port had the most recent change. This can be a change in channel levels or a DMX signal becoming active.The Highest Takes Precedence strategy is used for combining the HTP inputs and the result of the LTP merging. In this strategy each DMX channel is compared across the inputs and the highest value is forwarded to the output.If a DMX signal is present on the Priority input then this input is forwarded directly to the output. In this case all other inputs are ignored.
