Shenyang Jixiang Food Machinery Co., Ltd. is located in Shenyang, which is the economical, cultural and communication hub of the Northeastern region of China; a major industrial and cultural city with historical importance. Its scale of equipment manufacturing industry is grand with solid foundation and relatively strong capability of forming a complete set.
Jixiang Food Machinery is one of the leading manufacturers of meat processing machinery in China, who has an excellent reputation and occupies the leading position in Chinese market. The main products are bowl cutter, cooking & smoking system, sugar smoking house, cooking house, vacuum tumbler, grinder, mixer, bone separator, brine injector, ice maker, elevator, frozen meat cutter, filler, tenderizer, knife sharpener and other accessorial tools, which can be widely used in all kinds of products such as: pork, beef, poultry, fish, quick-frozen food, canned food, prepared food, etc.
The outstanding quality was ensured by our team of experts, experienced engineers and excellent manufacturing techniques. All the products are made of high-quality materials and meet Jixiang's exacting quality standards, and it ensures safety and hygiene while keeping low energy consumption. Jixiang Machinery has been certificated to ISO9001, and her main products have CE certificates.
"Listen to the voice of the customer" ranks No. 1. Customers' demands deliver us a stronger motivation to improve endlessly. We are striving to provide quality products and excellent service, from the beginning consultation, design to the following installation, start up, training and after-sale service, meeting different aspects of users' requirements.
Our products are sold to the whole Chinese market and exported to more than 60 countries in the world, including America, Europe, Australia, Asia and Africa. The scale of export is rapidly increasing. The quality products, the excellent service and the good reputation are the most important elements of our success. Sincerely hope that Jixiang Machinery makes your products delicacy and bring you satisfactory benefits.
Reputation
The most important and proud thing for Jixiang is having a good reputation since the company has been established for almost thirty years. Based on the trust and reliable, we have established many long-term stable relations of cooperation with our customers, suppliers, and trade partners. Many of them have grown and prospered together with Jixiang.
Quality
Jixiang’s products are famous for its stability and quality. All of our researches and designs are based on customer requirement and future trends. From the beginning of selecting high-quality materials, to the following advanced processing technology and strict quality standards, Jixiang always provides you the stable performance, food safety, user friendly and the sustainable development equipment.
Service
At the beginning of design, products are fully considered from the aspects of long equipment life, low wear and easy maintenance. Qualified engineers will reply in a short time, from mechanical assembly, user training to maintenance and repair, they will provide you with professional training and technical support. Choose replaceable, durable accessories, and ensure that accessories are sufficient. We will respond quickly to our customers' accessories needs and work with leading logistics companies to ensure that accessories arrive in your hands in time.
Future
For us it is less to concern only with short-term success, the long-term sustainable development is more important. Based on customer satisfaction and future trends, Jixiang will never stop improving and adjusting our products to improve service and obtain the customer's satisfy. In the near future, we will move forward with customization and automatic production line, enable to keep pace with the ever-increasing demands of the food production industry and growing business scale.
Unsere Produktgruppen
Keywords
- Bowl cutter
- Grinder
- Mixer
- Tumbler
- smoke chamber
Unsere Produkte

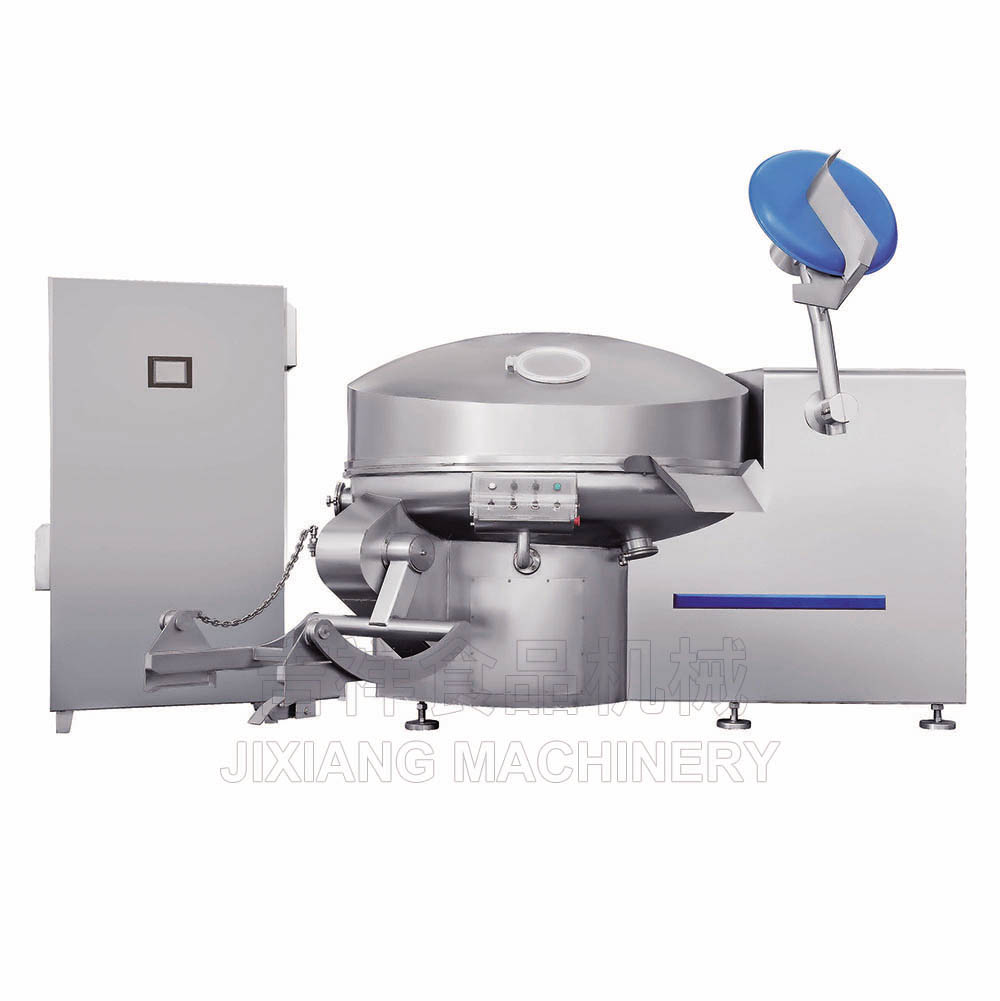

Bowl cutter
* High-quality Stainless Steel, solid, durable and hygienic.
* Advanced PLC &HMI (Human-Machine Interface) control system (For Type II).
* Temperature, Time and Bowl revolution can be displayed and controlled. It ensures the best chopping time control.
* Knife speed: 125I is Frequency conversion 300-4500rpm; 200I is 200/1800/3600rpm; 200II is Frequency conversion 300-4200rpm; 330I/II is Frequency conversion 300-3600rpm.
* The distance between knife tip and bowl can be 1.0-1.5mm, which guarantees the best result of chopping & mixing.
* Key parts such as Knives, Bearings, Frequency convertors, PLC, HMI and Electric elements remain world-top quality. Imported knife is optional.
* By water-cooling-loop devices, the temperature of cutter shaft fore bearing could be lower down.
* 200II/200III、330I/330II/330III are equipped with air conditioner for electric cabinet. (optional).
* 125I has no hydraulic loading device and cooling device.

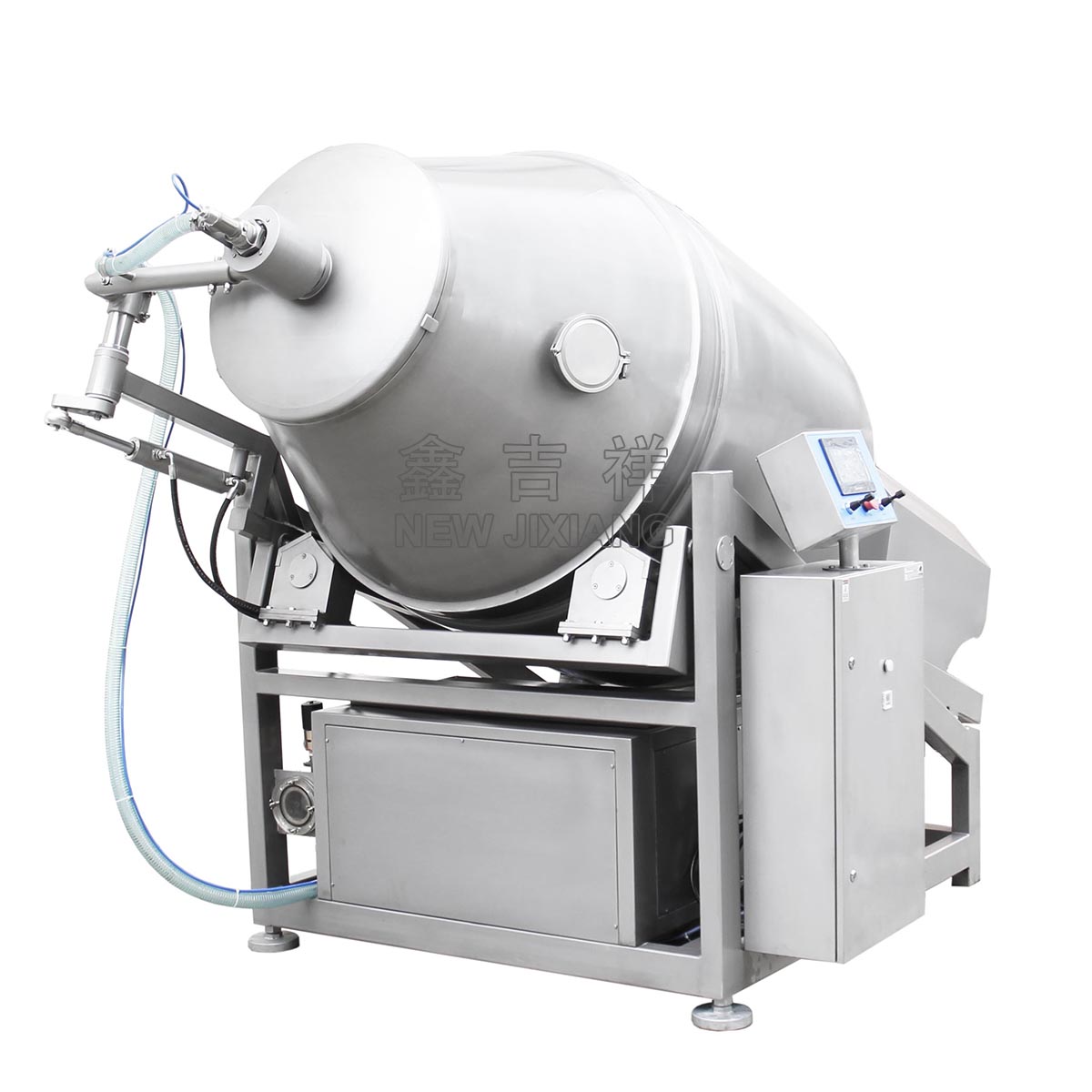

Tumbler
Tumbler GR-I and GR-II、III is a new generation developed on the basis of our traditional vacuum tumbler, Type I is electric-mechanical control and Type II is PLC&HMI control. The tumbler is made of quality stainless steel; reasonable structure, durable construction, stable operating, failure-free vacuum and filter, energy saving, high efficiency and simple to use.
Type III is all Stainless steel, fine polishing.
FGR vacuum tumbler adopts horizontal tilt structure; this structure contributes a greater loading capacity and automatic tilting discharge. Opening for automatic loader and suction loading are applied. Various materials of sausage, ham, bacon, roast meat, poultry and fish can be marinated and tumbled under vacuum or non-vacuum.
* 8 frequency converted tumbling speeds, from 4rpm to 11rpm. 10 different tumbling modes. 100 tumbling recipes can be created and stored.
* Total time, forward tumbling time, reverse tumbling time, interval time and circulation types can be set up.
* Triangular-vanes or single vanes are applied inside the drum.
* The application of frequency conversion can save energy by approximately 30%.
* Automatic suction port and reverse rolling discharging.
* Additional Mobile loader or Mobile feeding cart is optional.

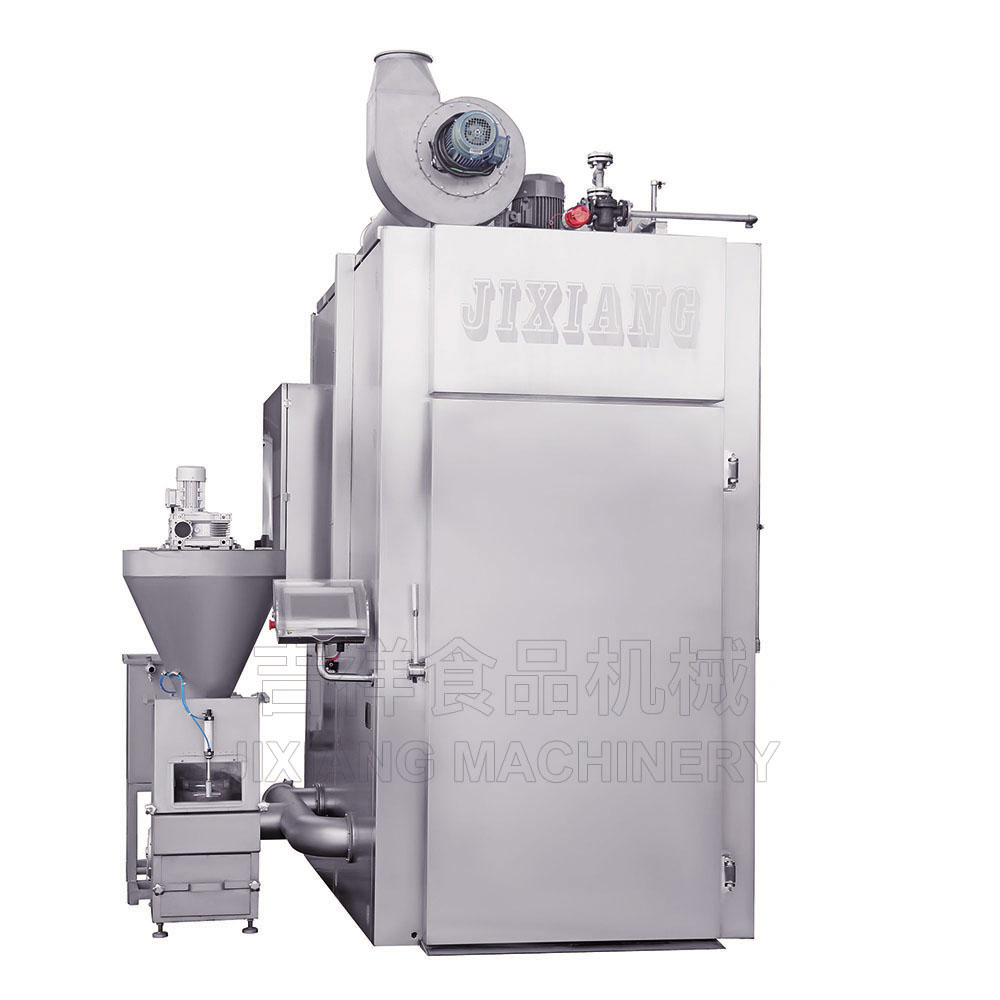

Smoke chamber
* Various applications of Cooking, Delta-cooking, Drying, Moist drying, Baking, Smoking, Reddening and Exhausting, total eight step. You can select individual steps, or you can create programs with these steps. More than 100 programs can be created and stored for different kinds of requirements. In the control system, there are Password, Testing, Warning, Faults records, Temp.&Humidity diagram, Working records and Interlock (Optional), for users’ easy testing, maintenance and management.
* Compared with other traditional electric heaters, Jixiang’s new patent S-Type heater is much high-efficient and heating evenly. The energy consumption can be saved approximate 15%.
* The independent open-style smoke generator can realize sufficient smoke, rapid smoking and excellent color coating. The ignition and smoking are controlled by PLC&HMI. The air supply can be adjusted automatically. The firefighting is automatic, and there is no smoke choking occurred.
* The air circulation system adopts Multi-layer-impeller blower of twin flowing ports and two-speed motor. The unique impeller ensures a big air volume with lower air pressure, so that the air circulation is rapid and uniform.
* The multi-layer cleaning and spraying system provides a sufficient cleaning all over the inside chamber, including blower impeller, electric heater, steam diversion board and side wall.
* Spaying system for cooling can be selected.
* The steam diversion board is made of SS316L for hygiene, corrosion resident and longer working life.
* All the smoke-in and exhaust pipelines are connected with stainless steel clamp, easy to be assembled and disassembled. The floor adopts anti-skid board to guarantee safety.
* Remote data monitoring center is optional, to realize the collection, storage and analysis of data. The frequency conversion is also optional.

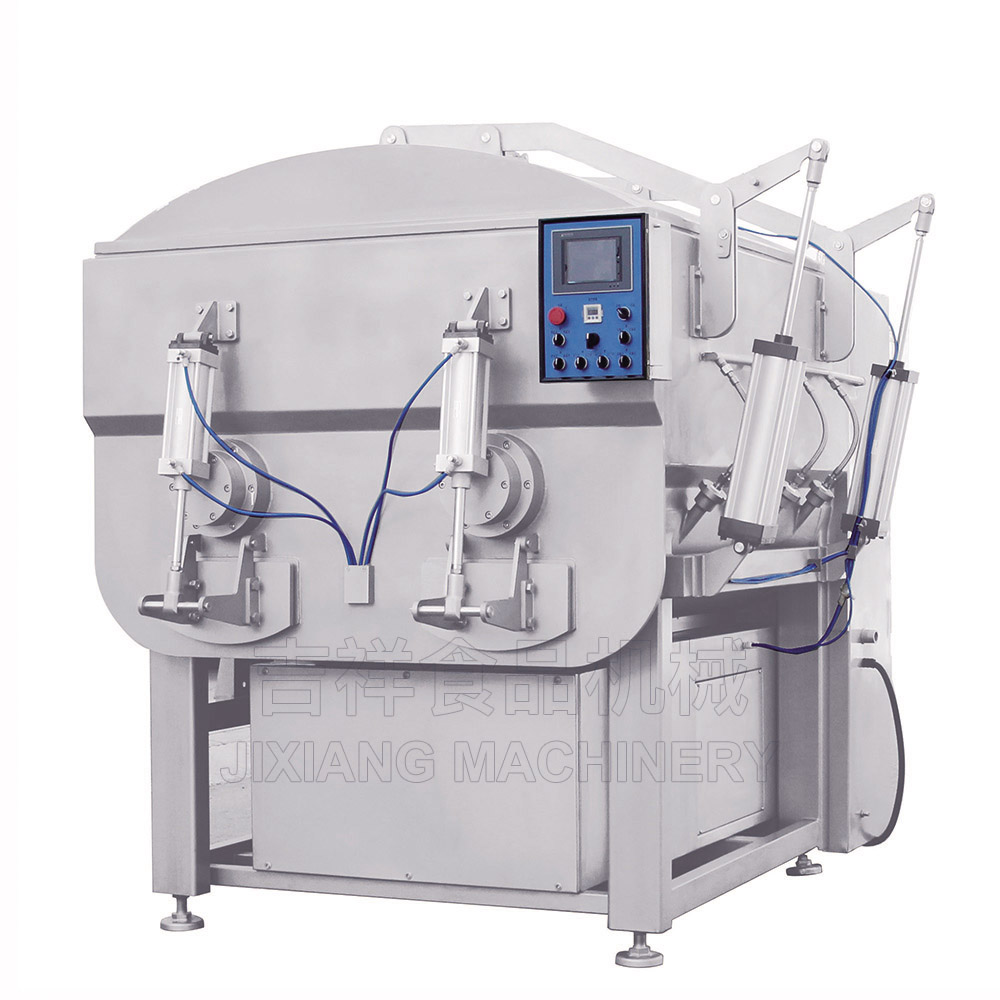

Mixer
* The mixer is made of quality stainless steel, solid, durable and hygienic.
* Materials are mixed with high performance vacuum system; and vacuum can be set up.
* The parallel twin shafts equipped with palm-vane and pushing-ring make a uniform mixing result. (Type ZJB-2000/ZJB-2500 have no pushing ring.)
* Type I is electric-mechanical control; Type II is PLC&HMI control. Total time, interval time and mixing types can be set up.
* Type III is stainless steel frame.

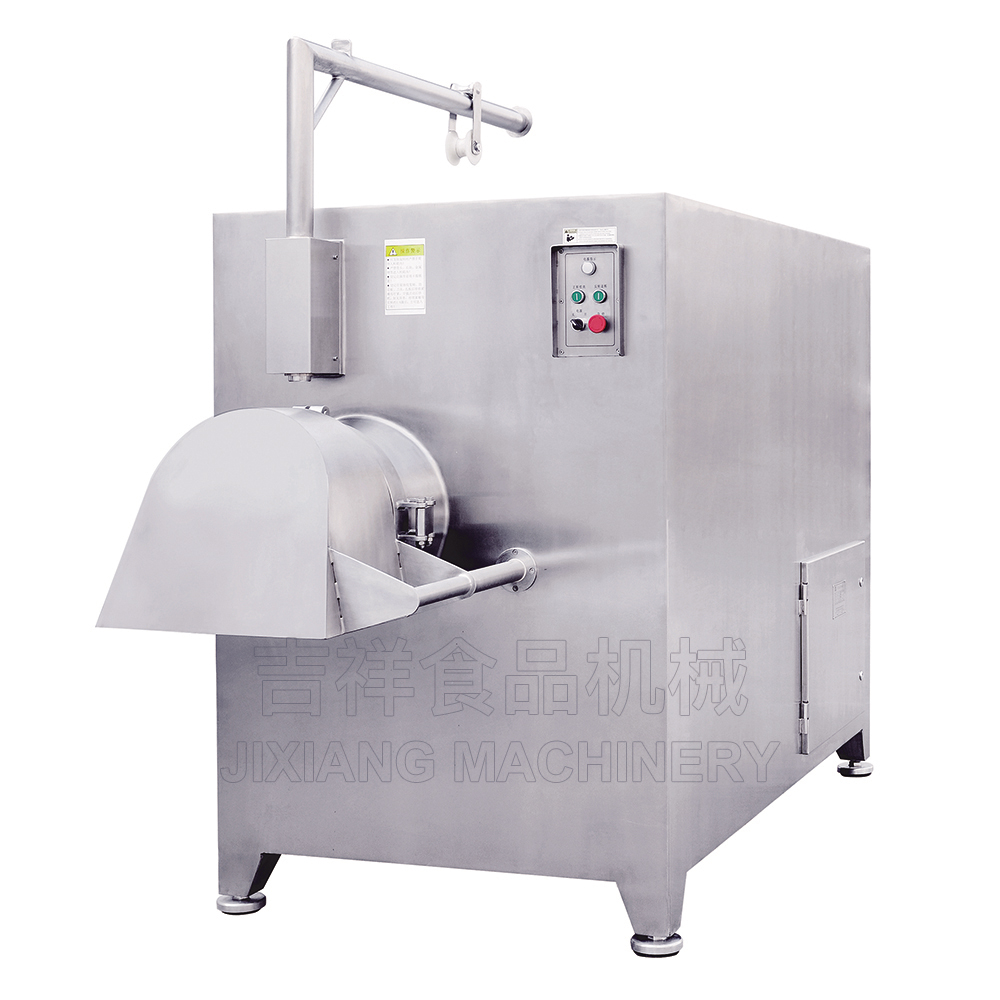

Grinder
The main body and food area are made of quality stainless steel, reasonable structure, reliable performance and low noises. Different applications are for both fresh and frozen meat. JR-300 is specialized for mincing frozen meat. To create an excellent meat cutting result, different hole-plates can be selected according to the various processing requirements.
JR-130I、JR-160I、 JR200I 、JR250I、JR-300I are stainless steel frame.
Double-Screw Grinder for Frozen/Fresh Meat JR-200
JR-200 Grinder adopts perpendicular double-screw structure. The material is pushed by the rotation of feed screw. Meat is clean cut into uniform particles through the relative movement of knives and plates caused by rotary processing screw.
The main body and food area are made of quality stainless steel, nice looking, reasonable structure, reliable performance, smooth running, easy operation, hygienic and low noises.
JR-200 Grinder can cut both fresh meat and frozen meat block with size 50-120mm and temperature no lower than -18℃. To create an excellent meat cutting result, different hole-plates can be selected according to the various processing requirements.
Grinder for Frozen/Fresh Meat JR-250
JR-250 meat grinder uses two methods of grinding meat: fresh meat screw and frozen meat screw. Please choose fresh meat screw to cut fresh meat. When the -3 ° C to -10 ° C frozen meat is cut, the frozen meat screw shall be used to make the raw meat reach the required meat product.
Grinder for Frozen Meat JR-300
The JR-300 meat grinder is a special frozen meat grinder. It can directly cut large pieces of meat from -10 ° C to -18 ° C.
