Consolar - PVT air collectors for heat pumps
Consolar has been a technological leader in the field of solar heating for 30 years. The company was founded in 1994 by four engineers of whom three are still managing the company today. Starting with plastic storage tanks including special stratification systems, Consolar now offers complete system solutions for practically all situations in old and new buildings from a single source. In order to achieve particularly high system efficiency and low fuel consumption, we break new ground and continue to set standards within the industry.
PVT air collectors ‘Made in Germany’
Central components such as tube collectors, hybrid collectors and storage and heat exchanger systems are developed and tested in our own laboratory in Lörrach in southern Baden. Production is carried out in co-operation with the AKG Group in northern Hesse. Consolar has trading partners in ten European countries.
Satisfied Consolar customers
Over 40,000 systems with Consolar technology are now in use beyond Europe. Consolar co-operates with leading institutes in the development and testing of its systems. The components are put through their paces. However, the recipe for success lies above all in the close co-operation with our customers right from the development stage. The particularly high efficiency of the systems, especially when integrating the solar system into existing heating systems, is a central task.
Vision and company ethics
Our vision is a one hundred per cent renewable energy supply. In addition to our high standards for highly efficient and durable technology, the way we work is also important to us. The basis is a good working atmosphere with a strong sense of influence, responsibility and motivation among all employees.
Unsere Produktgruppen
Unsere Anwendungsbereiche / Lösungen
Downloads
Dokumente
Keywords
- PVT Wärmepumpenkollektor
- Solarwärme
- PVT Kollektor
- Hybridkollektor
- SOLINK
Unsere Produkte

SOLUS
Advantages:
- Up to 40% savings on your annual energy bill
- Stratification system ensures rapid availability of solar heat. The boiler needs to fire up less often and more can be saved
- Optimised water hygiene through the continuous-flowprinciple
- High-performance insulation system stores heat for several days

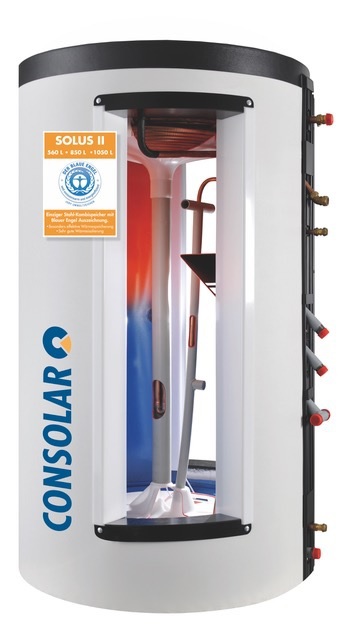

SOLUS II: Highest Energy Savings on Hot Water and Heating
Product description
Through its patented construction SOLUS II guarantees quick and high solar energy exploitation without the additional use of pumps or regulators for the generation of hot water. With its very low heat loss, considerable amounts of CO2, energy and therefore money can be saved over the whole service life of SOLUS II.
Usage:
- Family homes or apartment complexes
- Maximum energy savings for hot water and heating
- Easy integration into all heating systems (radiators or wall / under-floor heating)
- Optimised usage in combination with pellet or solid fuel boilers
- Compatible with oil or gas boilers
Efficient system engineering
In connection with PLANO flat plat collectors or the TUBO tube collectors the plants with COAX thermal store of high-performance systems for single family houses.
Special stratification technology
A Consolar combination thermal store stands out on account of its special stratification system. Due to its particular water management system ca. 2 - 3 times more water can be heated compared with similar systems without the patented casing. The advantage: the boiler does not need to heat as often and more energy can therefore be saved.
High storage capacity through stratified unloading
The heat capacity of SOLUS II increases above conventional thermal stores, on account of stratified unloading, which results in a less frequent need for additional heating and a greater availability of hot water. Due to the flat design of the solar heat-exchanger the full volume of the thermal store can be used, making it effectively equivalent to a much larger reservoir.
Very low heat loss through the high-performance insulating system
Heat loss is kept at an absolute minimum through insulation. The mirror coating of the tank significantly reduces radiation loss and additional air pockets between the container wall and the insulation increase this effect again. The EPS foam employed has a good insulation value and is ecologically superior to soft and hard PU foams. The specially developed angled connections serve as heat retarders so that the micro circulation and the resulting heat loss at the connection is reduced to a fraction.

TUBO II
TUBO II C & T – innovative tube collectors for large and small installations
Vacuum tube collectors for versatile applications
With the two new tube collectors TUBO II C with reflectors and TUBO II T without reflectors, a versatile range of applications are possible. While the TUBO II C is usually used for pitched roof and flat-roof systems, the TUBO II T is usually used for facade mounting or horizontal mounting on flat roofs, its main application area. Due to their symmetrical design, both types can also be mounted in landscape, For example on balconies.
Flexible use, outstanding design
The small module size is suitable for horizontal, vertical, roof-mounted, flat-roof and frame mounting. The TUBO II impresses with its extraordinary design and is one of the lowest profile tube collectors on the market. Giving an aesthetically pleasing appearance.
Maximum energy savings thanks to the high collector yield
Thanks to the TUBO II C and TUBO II T, a high thermal efficiency can be achieved even in the winter half of the year. The vacuum between the tubes gives excellent insulation. This is the main reason for the 20 % – 40 % higher efficiency compared to flat plate collectors. In addition, the light beams are concentrated in the TUBO II C via parabolic reflectors. Thus, even with relatively small collector areas, high gains can be achieved.
Quality and durability
Over 20 years of practical experience are woven in the TUBO II. The used materials are chosen for a long service life. The underslung manifold provides essential advantages: Condensation, which forms in certain weather conditions, can run out of the tube. As a result, the tube can not burst during freezing. In addition this leads to an increased service life of the antifreeze and to particularly low heat losses.
Environment
The frameless, flat design of the collector minimises elaborate material use and thus energy for production. Double glassed vacuum tubes efficiently replace unnecessary insulation.

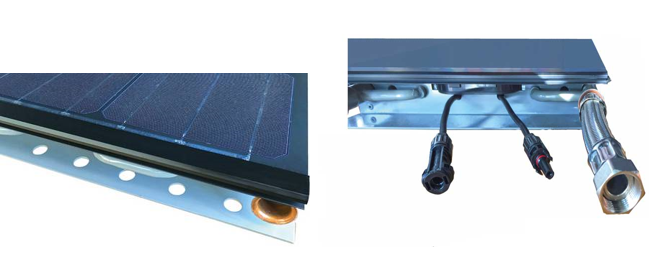

PVT heatpump collector SOLINK
SOLINK combines the high efficiency of ground source heat pumps with the advantages of air heat pumps. Silent operation and flexible use on roofs or facades make the collector attractive as an energy source for electricity and heat. SOLINK was specially developed for heat pumps. Coupling with geothermal probes is not necessary due to the high efficiency heat exchange with double use of the roof area. This creates systems with a completely renewable energy supply and low operating costs.
Double use of the roof space and 10 times the heat exchanger surface area.
The area of the roof can usually be used only once for electrcity or heat production. With SOLINK, on the underside of the XL 2 m2 PV module, a special air heat exchanger with a surface area of 20 m2 ensures high power production and simultaneous utilization of the module waste heat. This means that the entire heat requirement is directly covered and the total annual electricity demand is produced. The large surface area heat exchanger makes this possible on a much smaller roof area compared to other PVT collectors.
Silent operation
SOLINK works without the usual fans and an outdoor unit. In comparison to an air source heat pump the outside can be enjoyed in peace.
Highest efficiency without a ground array
So far, a ground array of either bore hole or horizontal pipes had to be laid for low power consumption. SOLINK can do without. In most cases, roof or possibly facade surfaces are sufficient. With similar investment costs, a higher return is given.
7% increase in performance, quality and service life
The large air heat exchanger reduces the module temperature compared to standard PV modules with and without heat pump operation. Approximately 7 - 10% higher output yield and a reduced maximum module temperature lead to a long service life. SOLINK has been tried and tested since the winter of 2016/17 and is based on a precursor development that has been in use since 2014.

CONTROL 602 und CONTROL 702 - Internet-Systemregler
Universal heating and solar controller with internet access
The CONTROL 602 and 702 are state-of-the-art system controllers that set standards. They have been designed with a series of functions for the particularly energy-saving operation of heating and solar systems.
The standard LAN interface of CONTROL 602 and 702 allows easy remote access to your system via the Internet. Using PC browsers, tablets or iPhone / smartphone devices, the current temperatures and values can be recorded, displayed in curves and changed directly. For example, the heater can be activated remotely. You can get a daily report z. B. to send the yield of your system by e-mail. Likewise, the CONTROL 602 and CONTROL 702 can send e-mails, faxes or SMS via the portal to you or your installation company in case of maintenance or fault. Thus, a simple remote diagnosis is possible and maintenance costs can be reduced. In the first year, the use of the portal is free.
Old and new boiler / spa
For existing and new boiler and heating systems, whether gas, oil, biomass or heat pump, the control is possible due to the particularly large range of functions in most cases. Many boilers can also be operated modulating.
Energy and yield measurement
Energy consumption can be measured by measuring solar yields and connecting up to three external heat meters. Thus, the savings by the solar system, the hot water consumption and the consumption of heating circuits can be easily determined. You also keep track of your costs. Depending on the use of the other functions, this function is available.
Datalogger and updates via SD card
Not only data from the system as a datalogger can be continuously recorded over many years via an SD card. In addition, it is also possible to save and load the configuration or to update the operating system.
Remote control unit TR-CONTROL-TOUCH
Optional Room Thermostat and Remote Control Unit TR-CONTROL-TOUCH With the TR-CONTROL-TOUCH, besides the normal function of a room thermostat on a touchscreen, you get the main functions and the overview of the most important operating conditions as well as the temperatures in your living room.
Possible functions (depending on version and selected functionality)
Solar:
Solar control with stratified charge logic
New: Jump start for solar pump z. B. at partial shading of the collector field
Capture of solar yield with and without volumetric flow meter
New / changed: East / West with two pumps
cooling
Two memory control
pool function
Boiler control and integration:
New: Single-stage or modulating control of the boiler (power or temperature controlled)
Solid fuel boiler regulation
Return flow increase or boiler buffering
heating circuit:
Control up to three heating circuits with the CONTROL 702
New: screed drying
Hot Water:
New: Programmable timer for 3 hot water temperatures: Lowered - Normal - Extra Comfort
Time-controlled circulation control
More functions:
Multifunctional temperature difference control
Multifunctional temperature switch
New: Holiday function allows deactivation of the auto-heating + WW automatic for a set number of days
New: The storable service telephone number of the craftsman is displayed in the event of a fault
New: Datalogger, parameter storage and update operating system via SD card
Optional: Remote control and room thermostat function by using the TR-CONTROL 2 Touch
Menu texts in four languages
