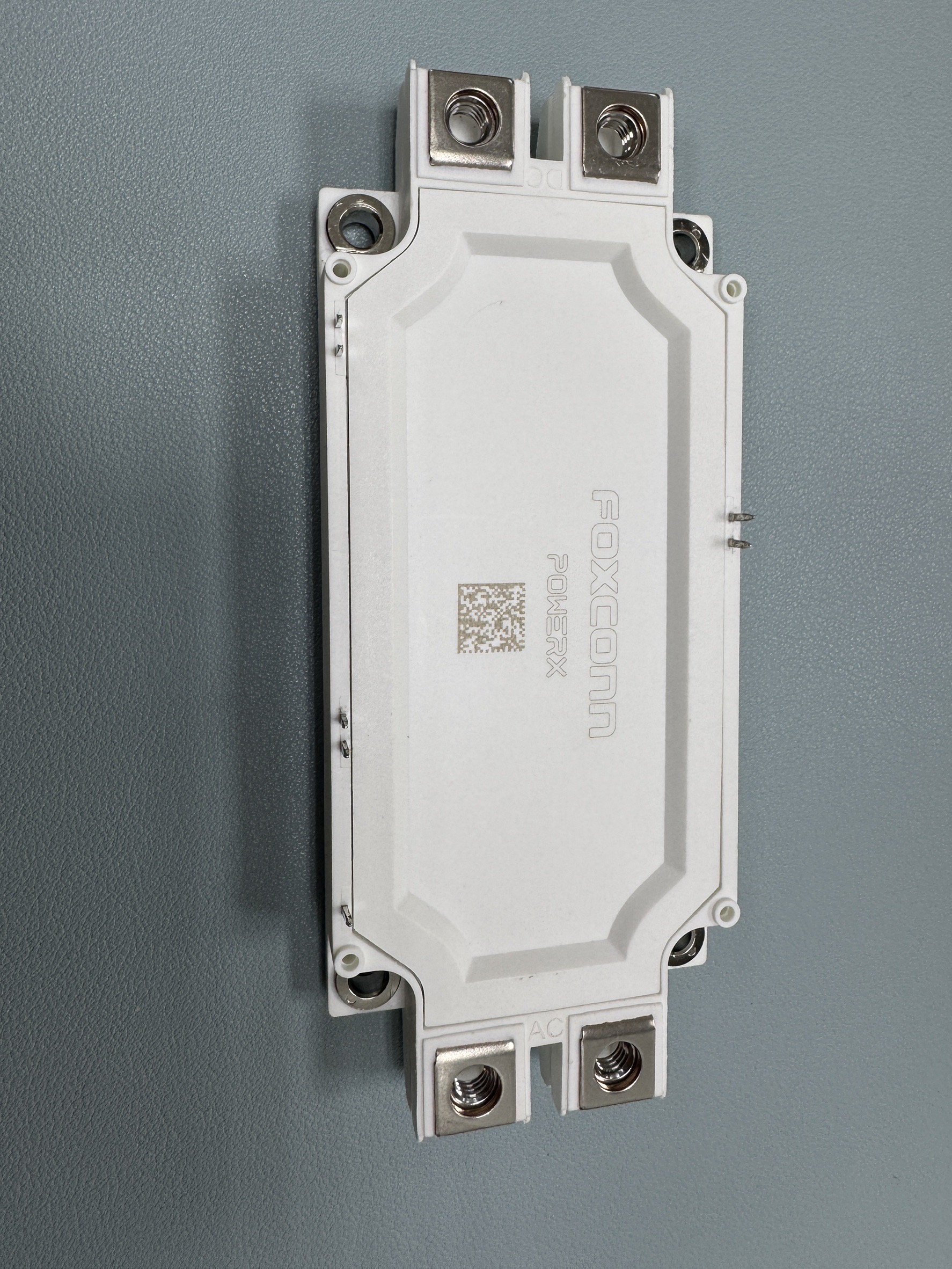

PowerX ED3 is a 2-in-1 (half-bridge) SiC MOSFET power module. It integrates high performance SiC MOSFET chips for E-bus and industrial motor drives application.

Key Features:

⏹ VDSS = 1200 V

⏹ ID nom = 600 A

⏹ Low FOM(Qg*RDSON)

⏹ Low switching loss and high switching

⏹ 4.2 kV DC 1 sec Insulation

⏹ High power density

⏹ Ni plated Cu baseplate

⏹ AlN for excellent thermal performance

⏹ Integrated NTC temperature sensor

◼ RoHS Compliant and Halogen Free

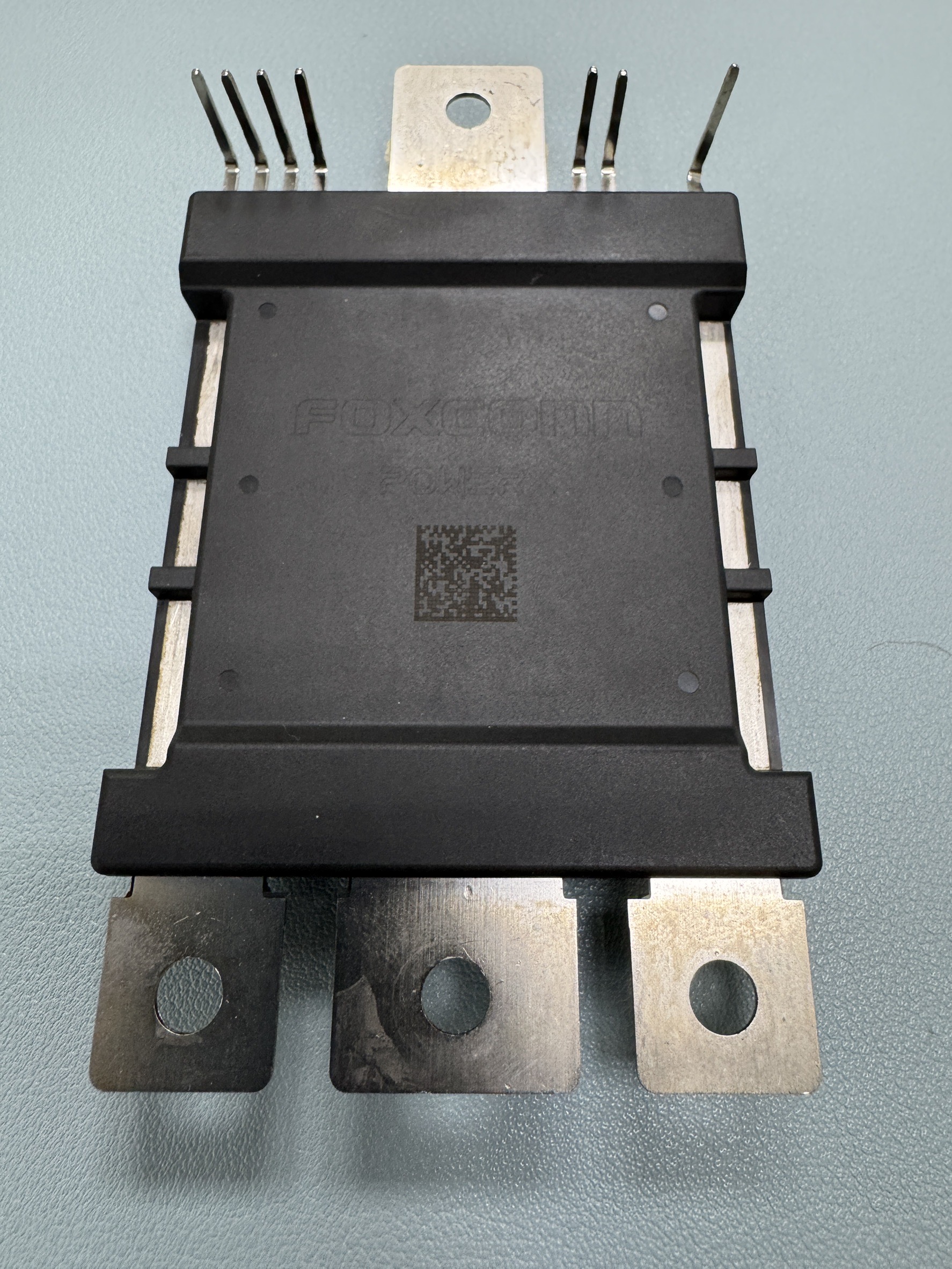

PowerX ED3 is a 2-in-1 (half-bridge) SiC MOSFET power module. It integrates high performance SiC MOSFET chips for xEV or motor drives application.

Key Features:

⏹ VDSS = 1200 V

⏹ RDS(on), Typ. = 1.82 mΩ

⏹ ID nom = 600 A

⏹ Low FOM (Qg*RDSON)

⏹ Low stray inductance = 5nH(typ.)

⏹ 175°C maximum junction temperature

⏹ Direct cooled Cu pin fin baseplate

⏹ High reliability (SiC sintered to Si3N4 AMB)

⏹ Integrated platinum temperature sensor

⏹ RoHS Compliant and Halogen Free
